SE-090 BronzeWrapped Bushing
Click here to more table size
SE-09G
SE-090F
Structure Characteristics and Applications
SE-090 wrapped bronze bearing is made of tin-bronze CuSn8 with its surface punched with diamond oil sockets which are preserved for oil saving. It has good anti-fatigue, anti-erosion anti-abrasion and load capacity. The products are widely applied in conditions of heavy load but low running velocity, such as on agricultural, buiding and engineering machines.
Product Benefits
1. Saving large amount of bronze material and save the working hours normally spent for lathing the bronze bushing.
2. Compared with lathed bushings and roller bearings, it is lights and more cost-effective.
3. Various holes and dents can be made on the frication surface for grease storage, prolonging the lubrication interval to 5 times as long as required by the bronze bushing.
4. Extremely high load sustainability, especially suitable for coarse abrasion surfaces.
Standard products available: straight bushings, thrust plates and pressure bearings.
Non-standard products available: straight bushings, thrust plates, planks, bearing bushings, slide plates and steel bushing assembly.
Material Structure
Technology
Tolerance
High-density bronze is rolled into shape or oil bags and oil holes are specially integrated into the inner surface to reduce the wearing and prolong the service hours. Besides, it has excellent anti-corrosion functions.

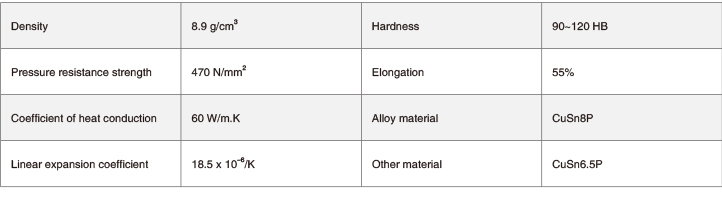

SE-090 Tech. Deta
The use of parameters
Parameters
CuSn6.5P
CuSn6.5P
CuSn6.5P
Density
8.9g/cm³
8.4g/cm³
8.9g/cm³
8.9g/cm³
8.3g/cm³
Pressure resistance strength
470N/mm²
440N/mm²
470N/mm²
470N/mm²
470N/mm²
Coefficient of heat conduction
60W/m.k
71W/m.k
60W/m.k
60W/m.k
58W/m.k
Linear expansion coefficient
18.5×10-6/K
19.2×10-6/K
18.5×10-6/K
18.5×10-6/K
18.5×10-6/K
Hardness
90~120 HB
80~110 HB
90~120 HB
90~120 HB
90~120 HB
Elongation
55%
30%
55%
55%
55%
Alloy material
CuSn8P
CuZn31Si
CuSn8P
CuSn8P
CuSn8P
Other material
CuSn6.5P
Bronze Wrapped Bushing
Copper Wrapped Bushing
Bronze Wrapped Bushing
Bronze Wrapped Bushing
Bronze Wrapped Bushing
SE-090
SE-091
SE-092
SE-094
SE-09G
